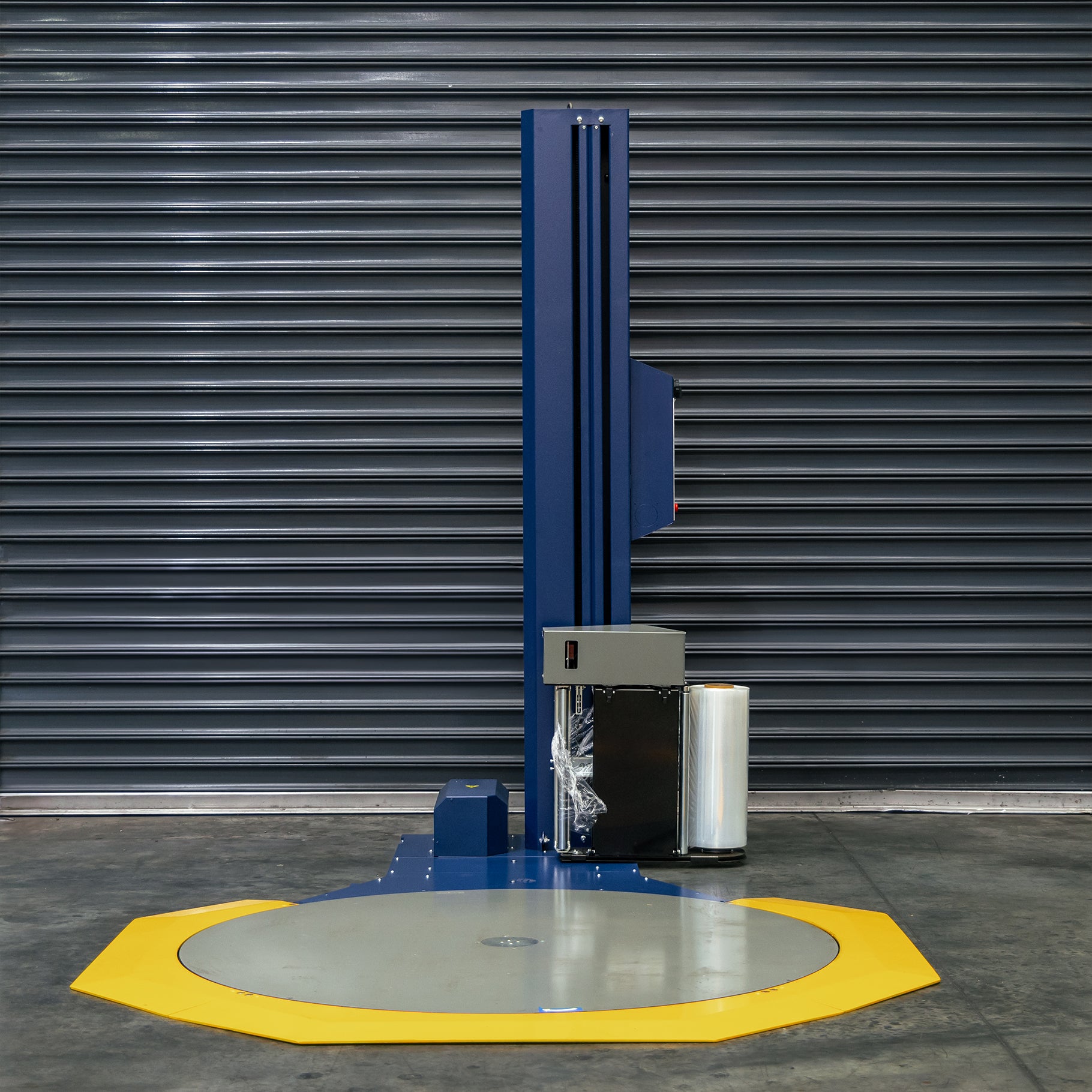

Plana Pallet Wrapper – Low Profile Semi-Automatic Pallet Wrapping Machine
-
Rent me for 12 months and get 10,000 points to spend in our Rewards store
Need help?

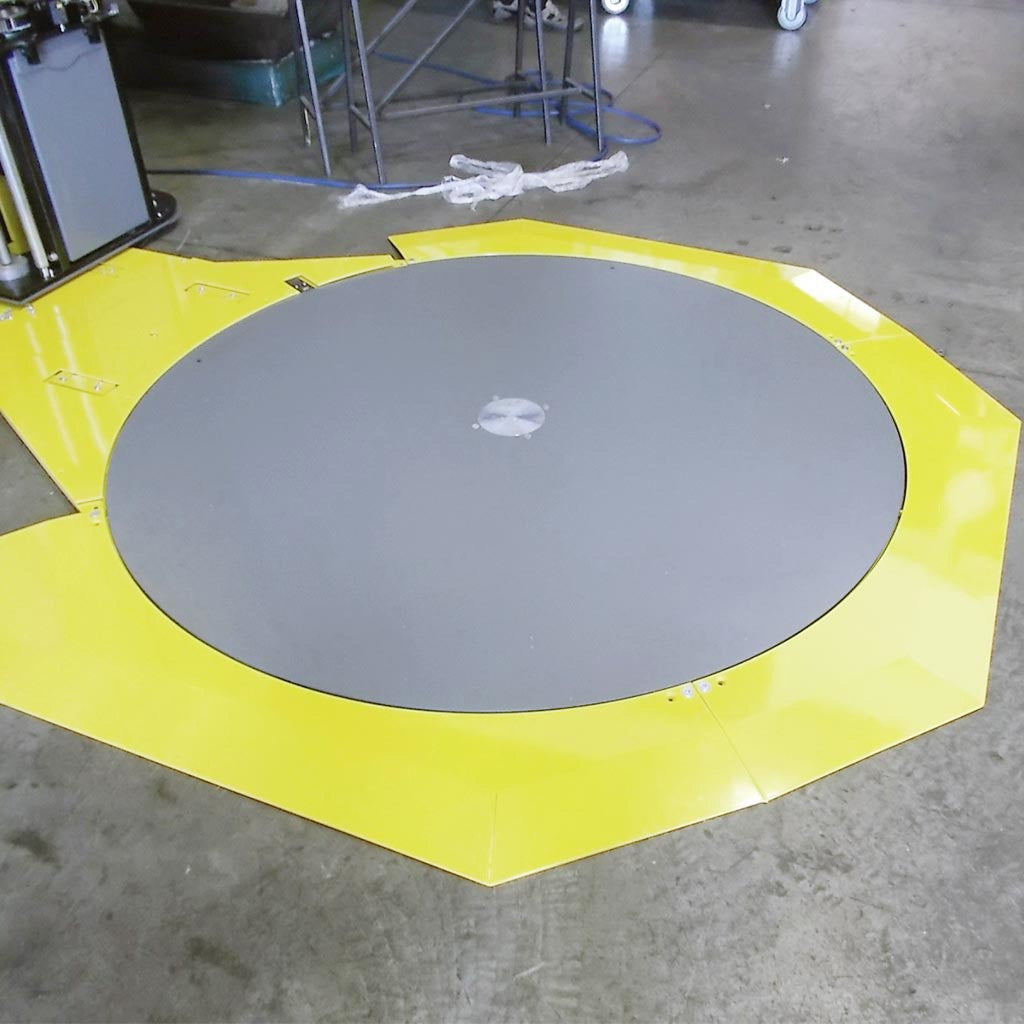

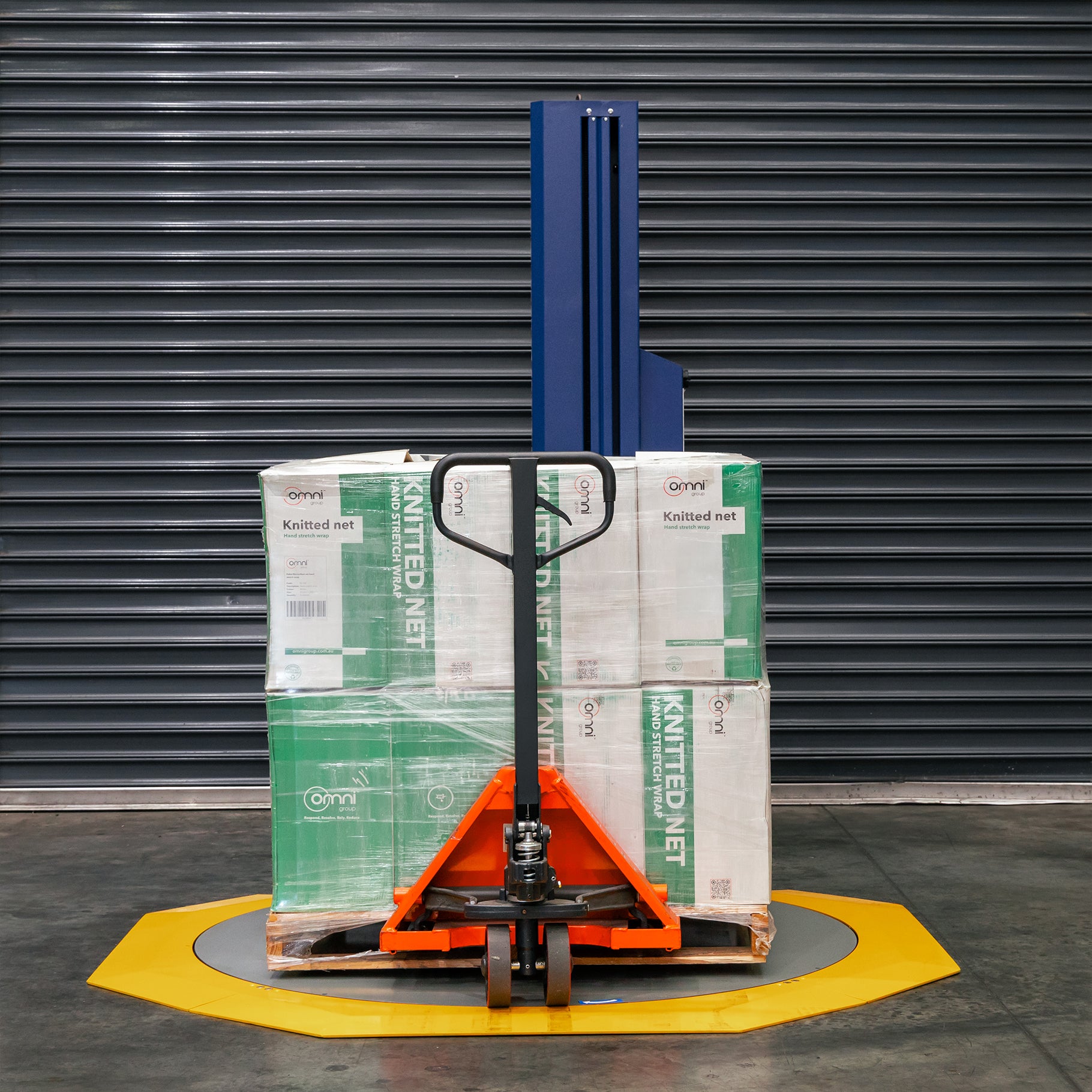

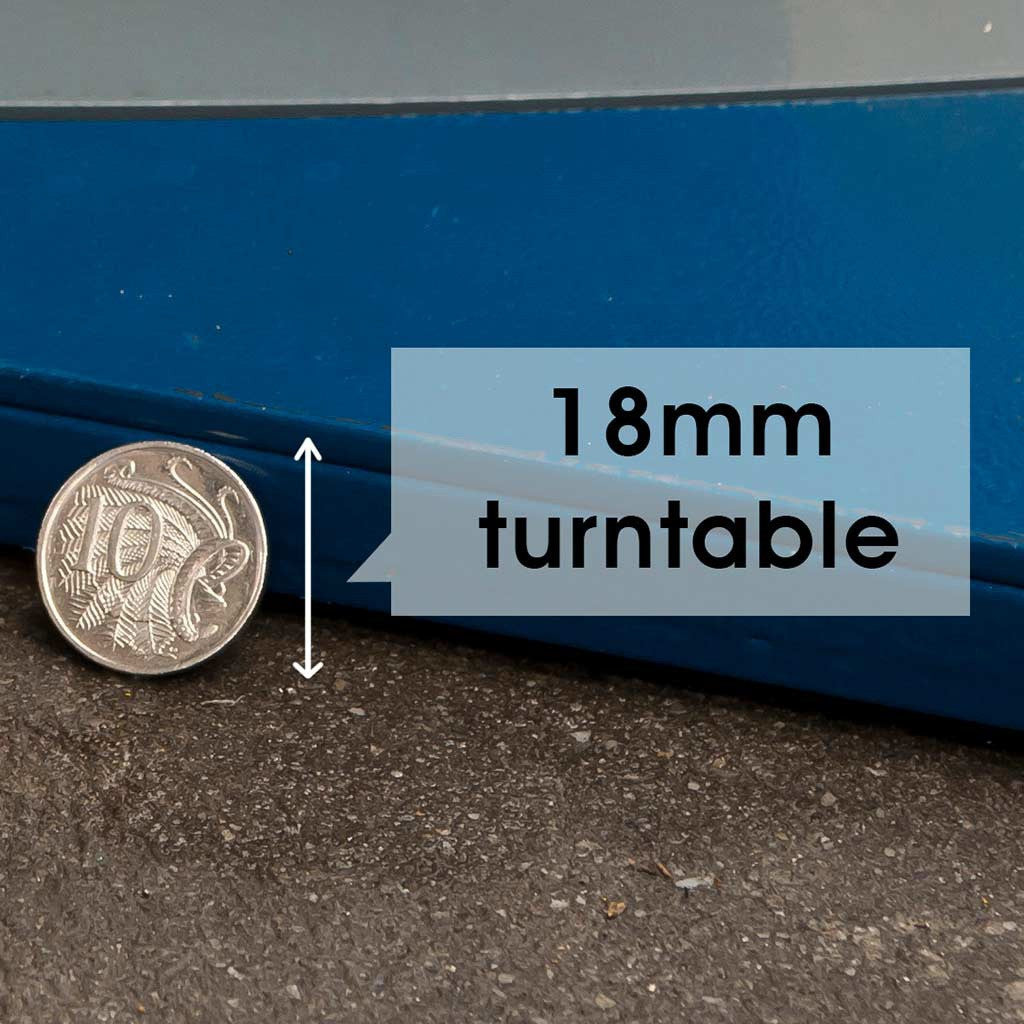

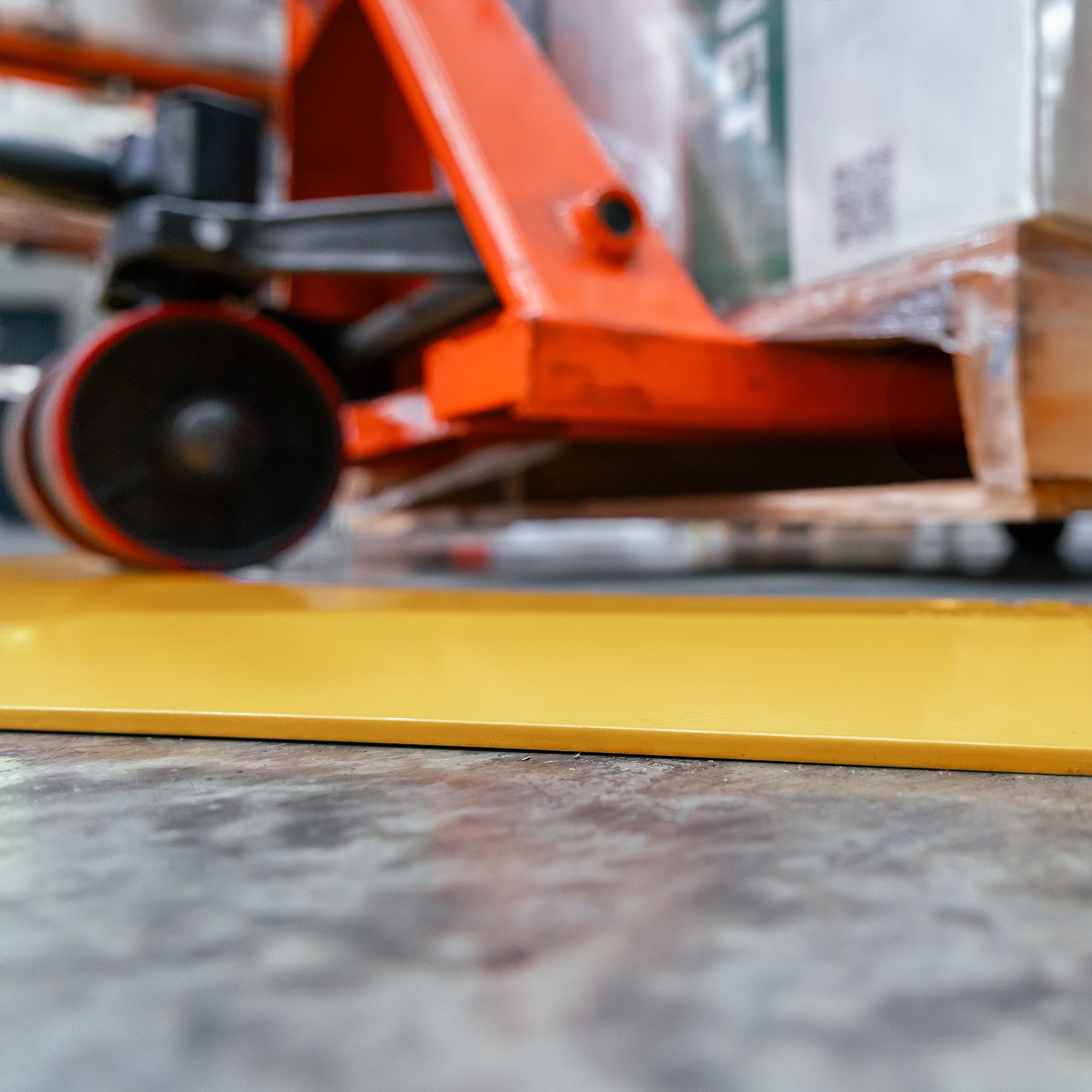

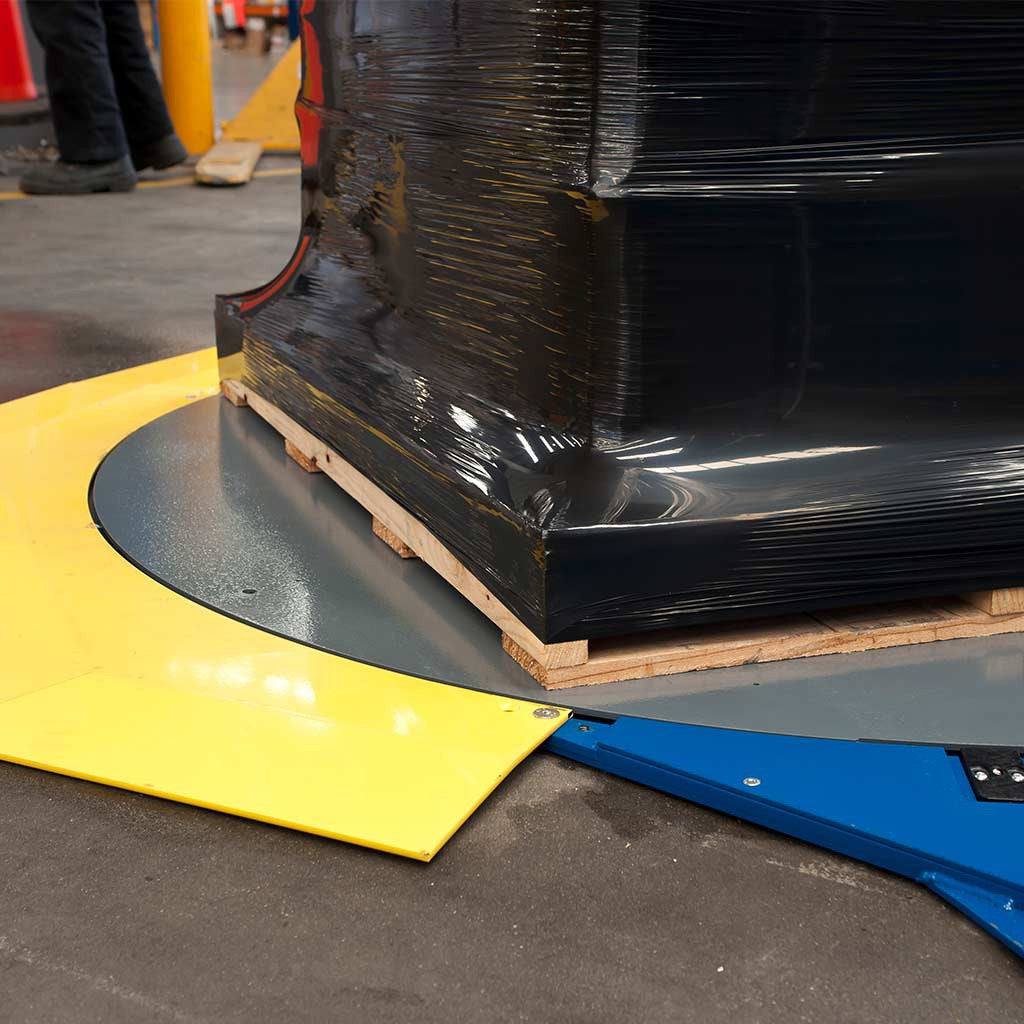

The Omni Plana Pallet Wrapper is the original and award-winning, patented low-profile pallet wrapping machine, designed to make pallet loading and wrapping faster, safer, and more efficient. With a turntable just 18mm high, the Plana is the lowest-profile turntable in the world — eliminating the need for bulky ramps or forklift assistance. Pallets can be easily loaded using a standard pallet jack, saving valuable time and space in busy warehouse environments.
Built for Performance and Reliability
Manufactured in Italy, the Plana combines precision engineering with robust design. The ultra-low-profile turntable reduces strain during loading, while advanced automation features improve consistency and throughput. With automatic film cut-off feature available at the end of each cycle, operators can achieve reliable wrapping without the need for manual film cutting or removal.
Customisable to Your Operation
The Plana can be configured with optional features to meet specific warehouse requirements, including:
- Remote control operation for improved efficiency
- Automatic cut-off feature
- Integrated weighing scales for real-time load management
- Tailored programming for specialised wrapping applications
This flexibility makes the Plana suitable for a wide range of industries, from distribution centres to manufacturing facilities.
Cost and Sustainability Benefits

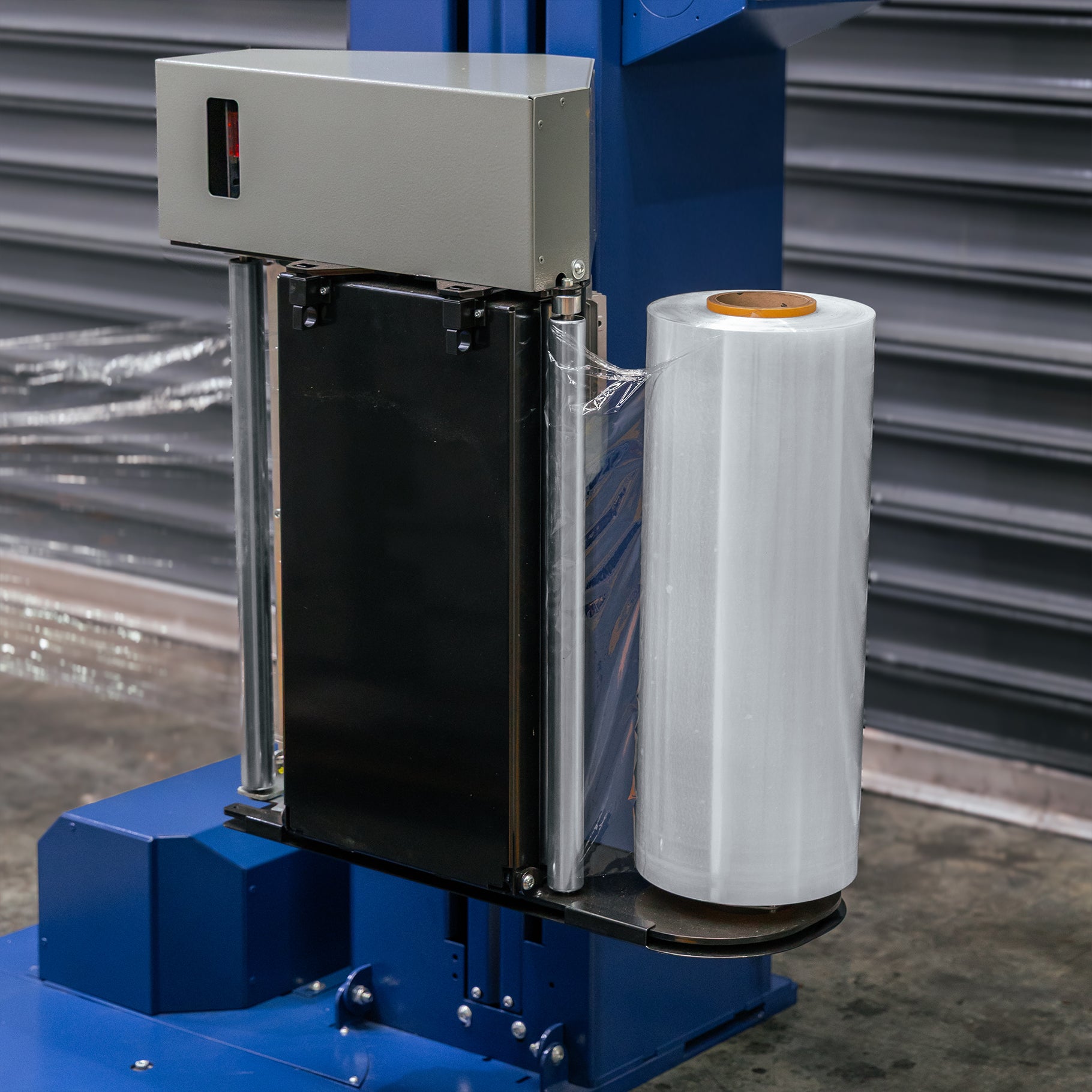

Equipped with Omni’s Power Pre-Stretch (PPS) system, the Plana can achieve up to 400% film yield. This not only reduces plastic usage but also lowers ongoing wrap costs, helping businesses meet both financial and sustainability targets. Pairing the Plana with Omni’s high-performance stretch wrap films maximises savings and ensures optimal load containment.
FUNCTION
- Electromagnetic brake for film stretching or optional
- power pre-stretch.
- Adjustable parameters: cycle election, bottom & top laps,
- top sheet cycle, rotation speed, carriage ascent speed,
- carriage descent speed, film tension, starting wrapping height.
- 6 working cycles: ascent/descent; top sheet; only ascent;
- only descent; layers; stack.
- Storage of 32 end user programs.
- 3 working modes: semi manual, semi-automatic, fixed height.
- Strengthening operation.
- Braked turntable at the end of the cycle.
- Wrapped pallet counter.
- Stop at home position.
- Powder coating.

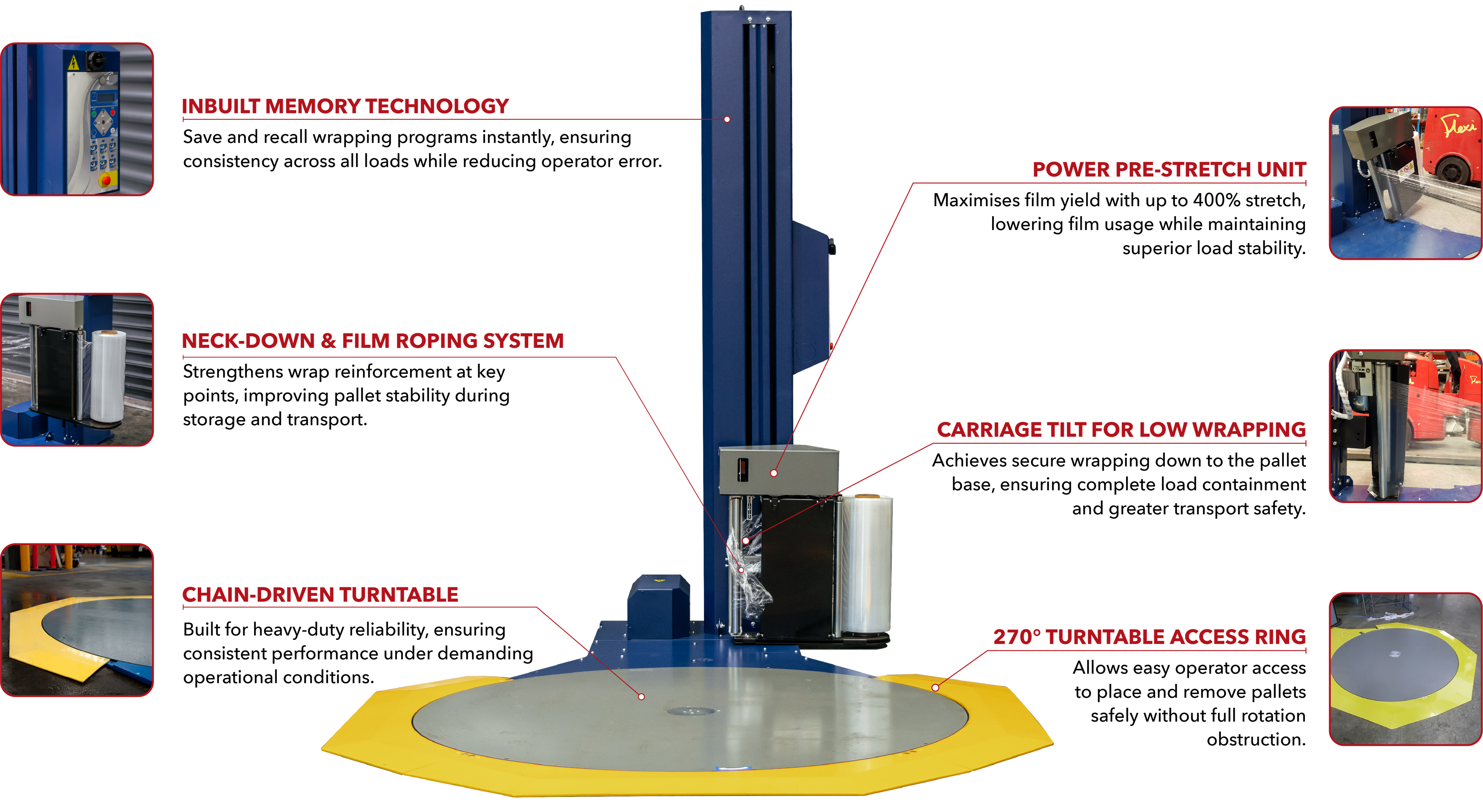

TECHNOLOGY

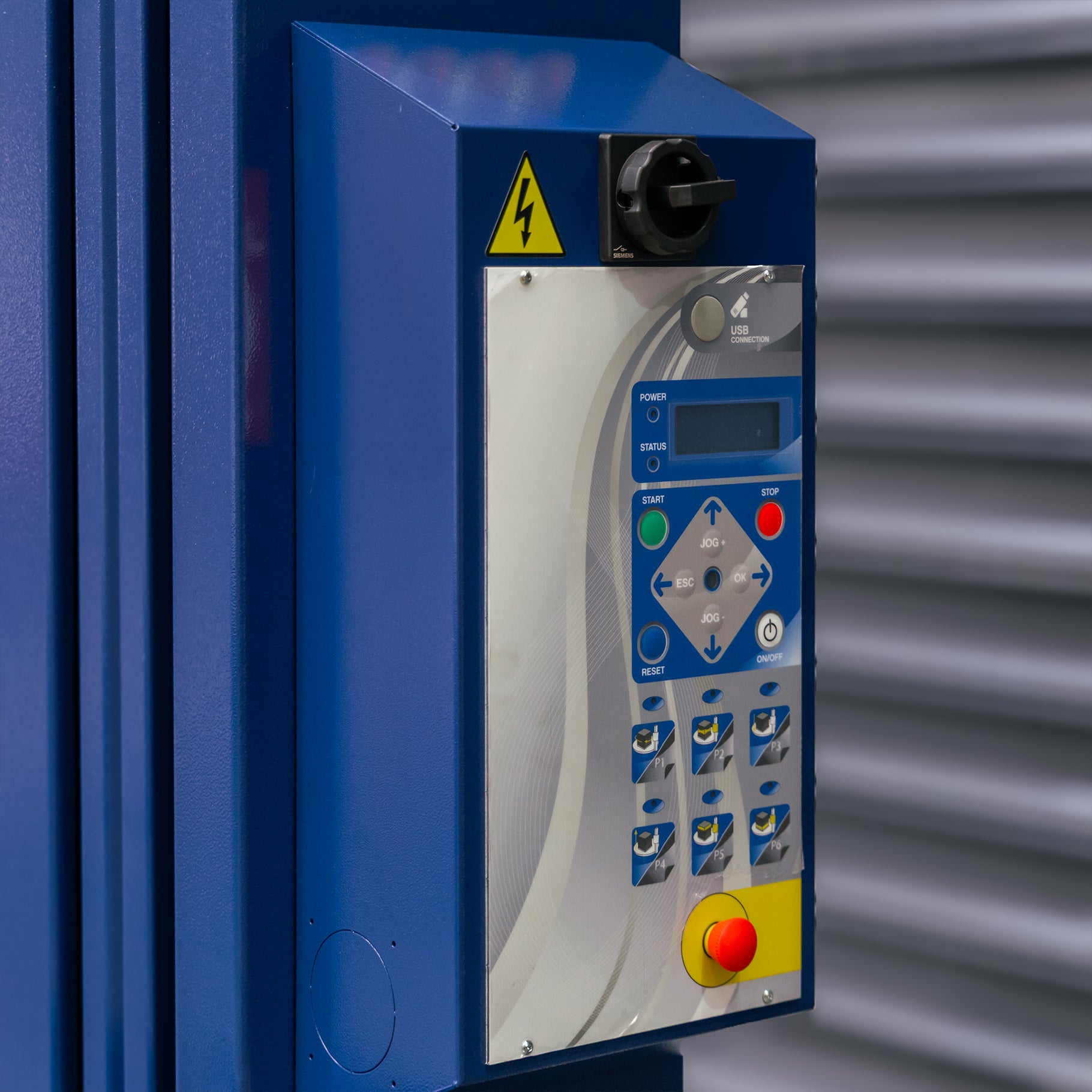

- Electronic printed circuit board.
- Carriage speed frequency controller.
- Turntable speed frequency controller.

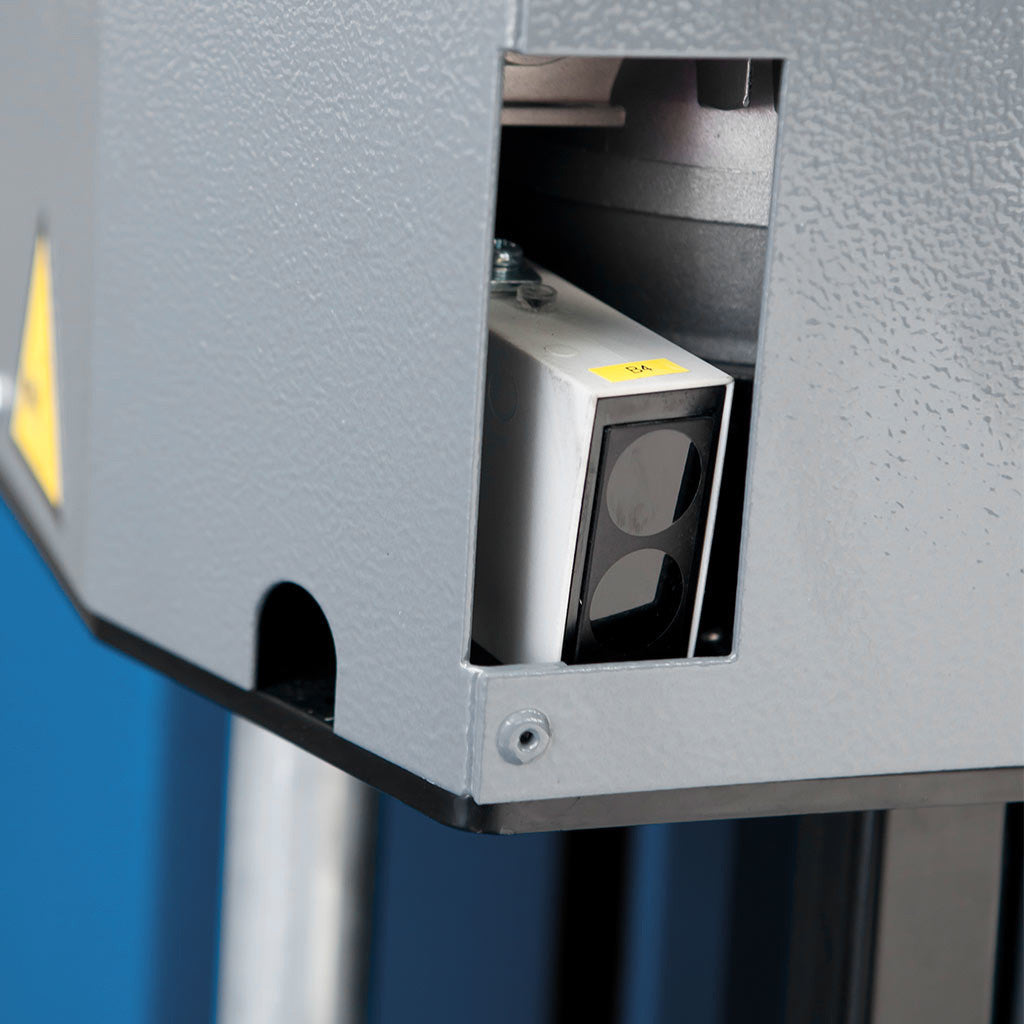

- Photocell for pallet height detection.
- Power board IP54.
- Receiver for radio remote control.
- Auto diagnostic.
EXTRA OPTIONS
- Adjustable power pre-stretch.
- Power pre-stretch with auto cut-off system.
- Roping system.
- 3,000mm max wrapping height.
- Ramp.
- Photocell for dark loads.
- Anti-static rollers.
- Film edge rollers to improve load containment force.
- Standard Delivery Time for Stock Machines: All standard tools and machines available in stock will be dispatched within 5 business days.
- Express Machine Dispatch Service: An express delivery option is available for an additional $250.00 + GST.
- Exceptions to Standard Time Frames: Machines not held in stock. Machines requiring custom additions such as weighing systems. Orders for 3 or more pallet wrapping machines. Orders for 8 or more small machines or tools such as void fill machines or handheld strapping tools.
Base
|
Base SuperCut
|
Plana
|
Cresco
|
Tiro
|
Motus Fix
|
|
|---|---|---|---|---|---|---|
| ITEM NO | 85.612.02 | 85.612.13 | 85.685 | 85.600 | 85.605 | 85.612 |
| IDEAL FOR | High‑volume, 24/7 operations. | High‑volume, 24/7 operations. | Space‑limited setups using hand trucks. | Everyday warehouse environments. | Budget‑conscious, low‑volume operations. | Operations needing arm flexibility & automation. |
| MAX LOADING WEIGHT | 2,000 kg | 2,000 kg | 1,200 kg | 1,200 kg | 1,200 kg | Max wrapping height: 2,000 mm |
| RENT FROM | $395/month + GST | $395/month + GST | $495/month + GST | $198/month + GST | $198/month + GST | $572/month + GST |
