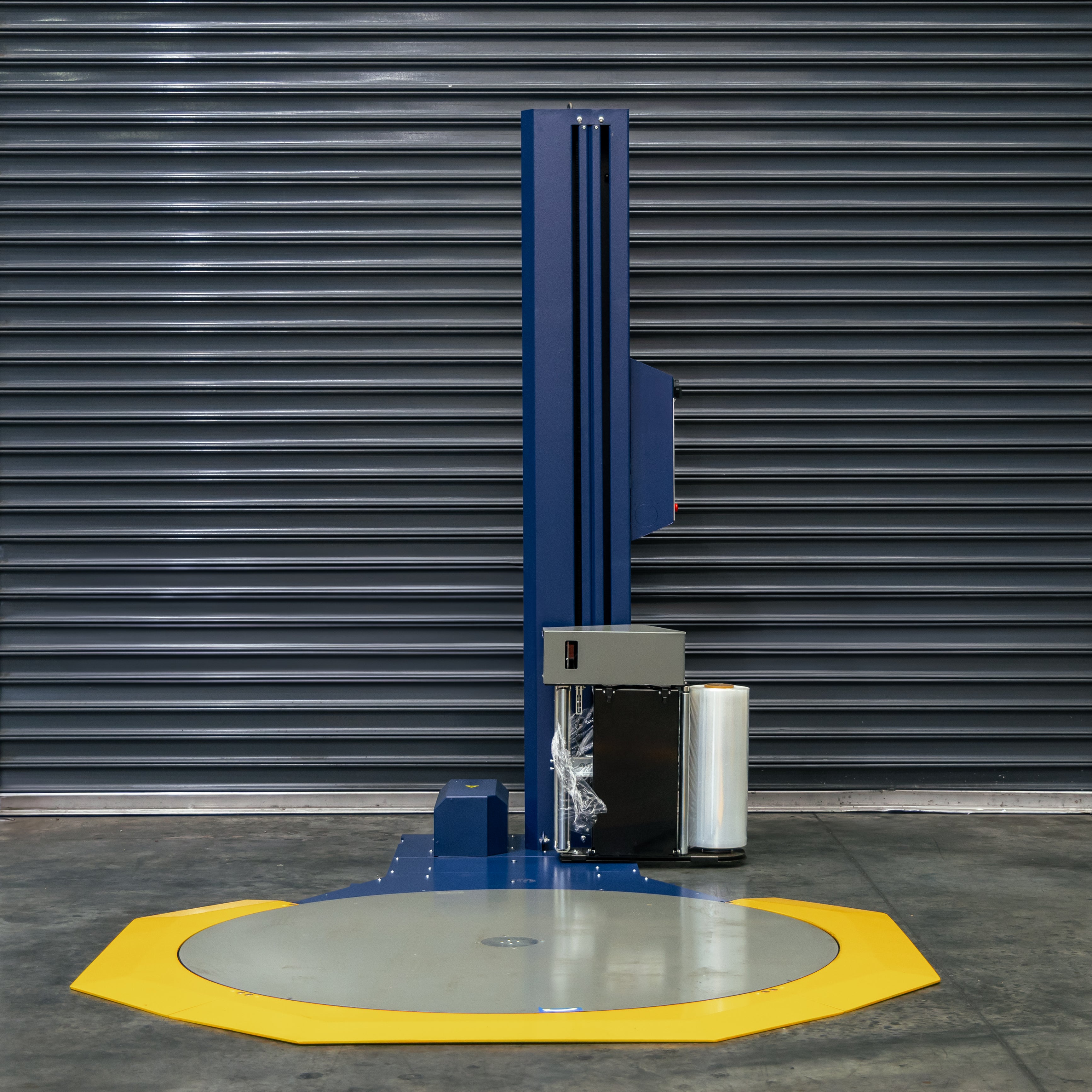

Plana Pallet Wrapping Machine - Brake Stretch Carriage

Item No:
85.685
Availability:
In Stock

RENT FROM:

$495.00/month + GST

GET FOR FREE*

Ask us how you can rent for free

BUY NEW:

Request Pricing Details

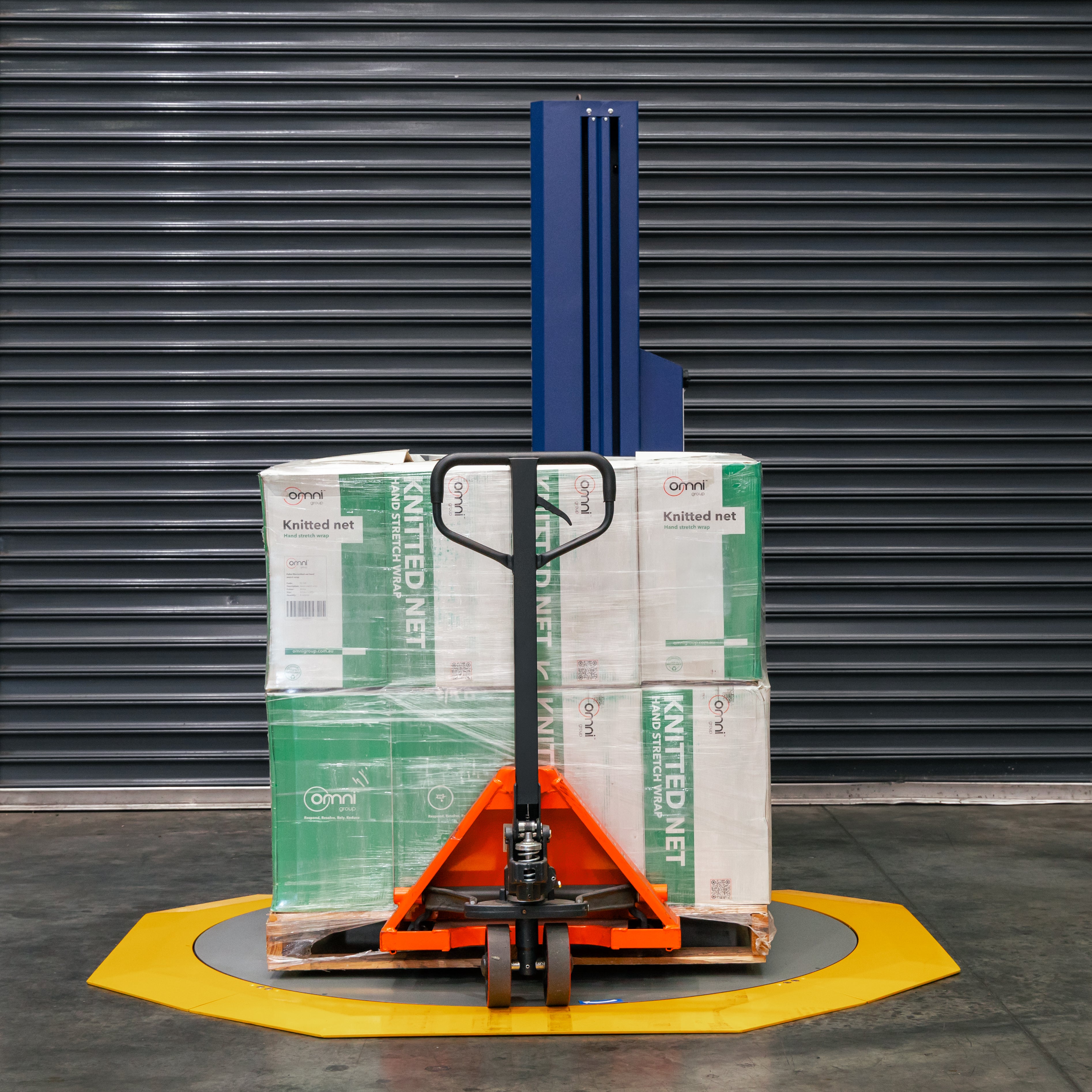

Can be used with most manual and electric pallet jacks.

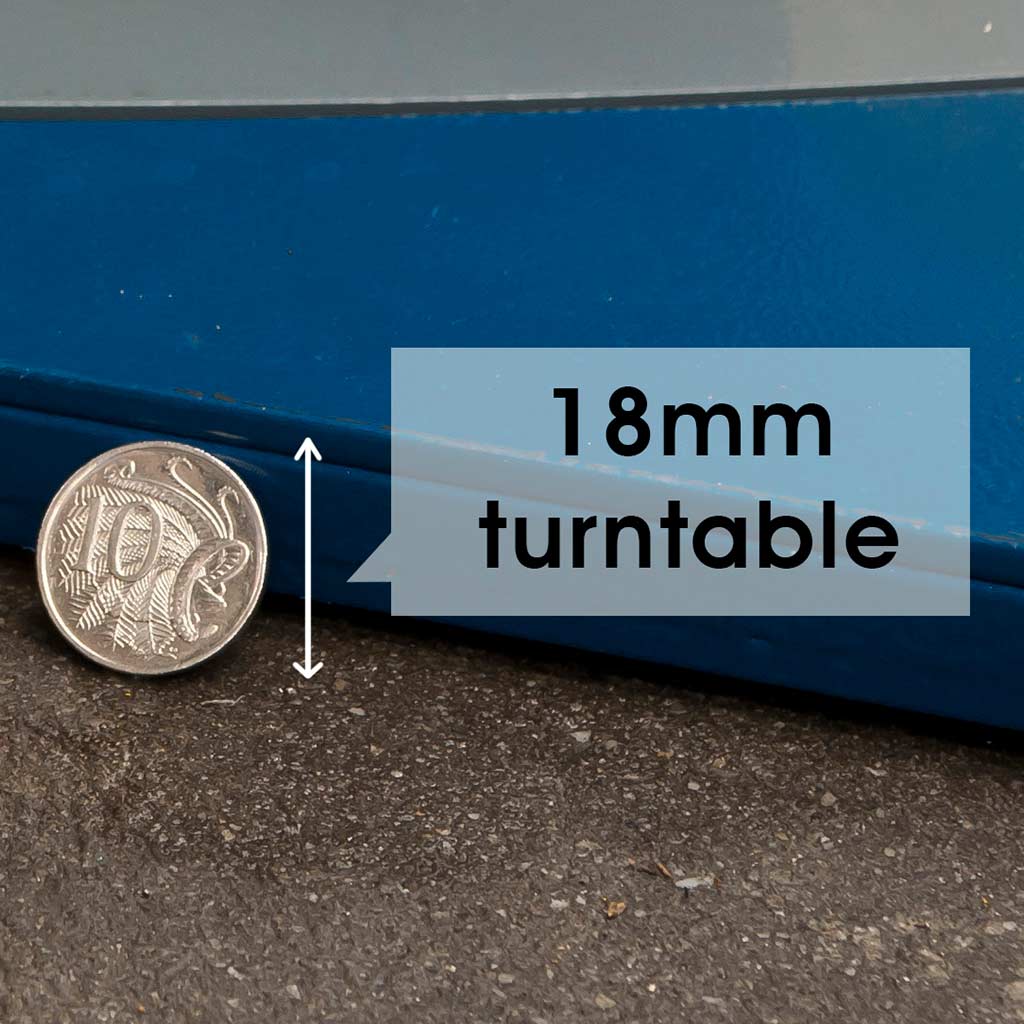

Low profile — only 18mm.
Perfect for hand truck loading.
Automatic programming.
Inbuilt digital technology to calculate usage.
Maximum loading weight 1,200kg.

Rent me for 12 months and get 10,000 points to spend in our Rewards store

Need help?

1300 764 963 Size guide

Live Chat

PRODUCT DESCRIPTION

PRODUCT VIDEO

PRODUCT SPECIFICATIONS

DELIVERY INFO

COMPARE ALL SEMI-AUTO WRAPPERS

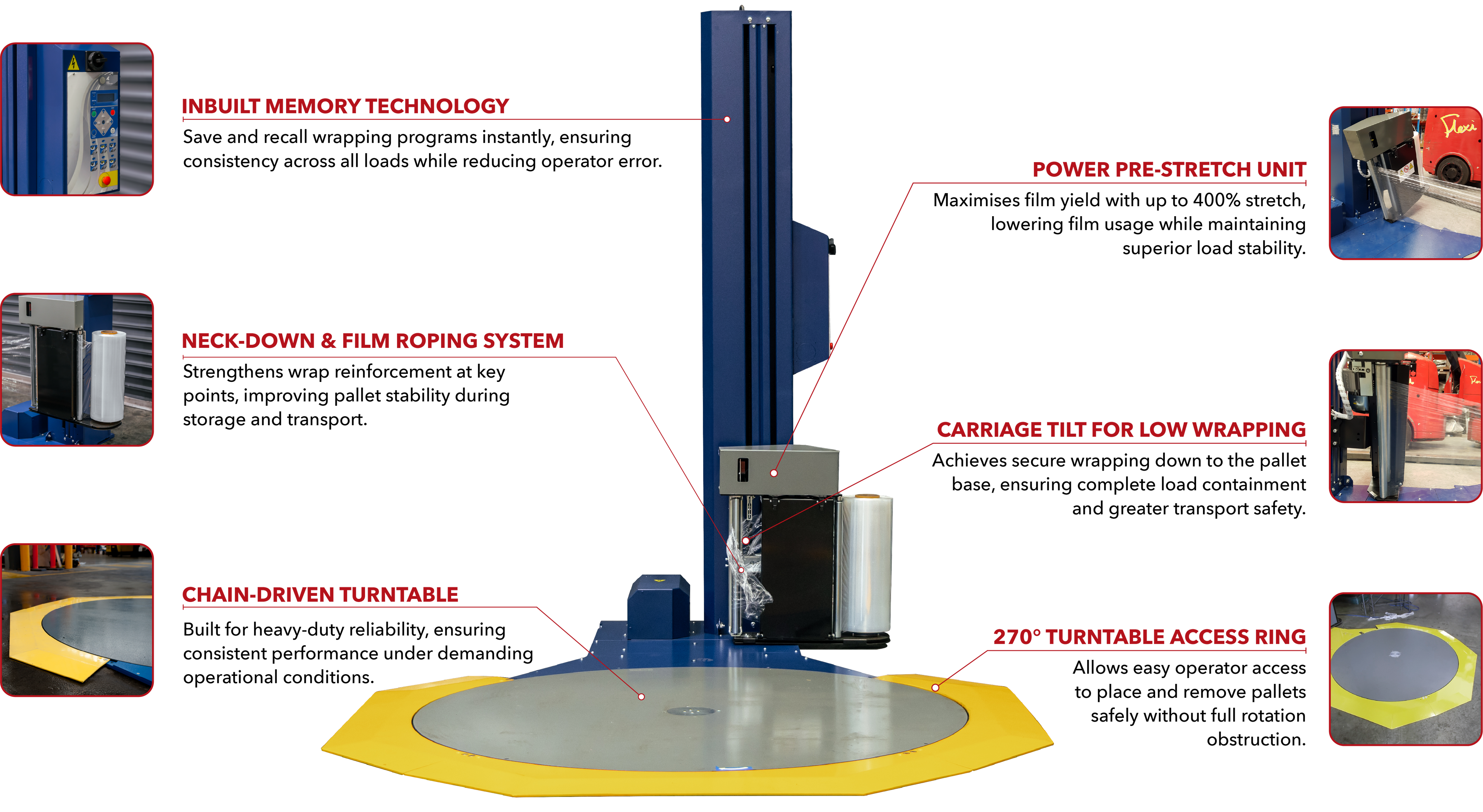

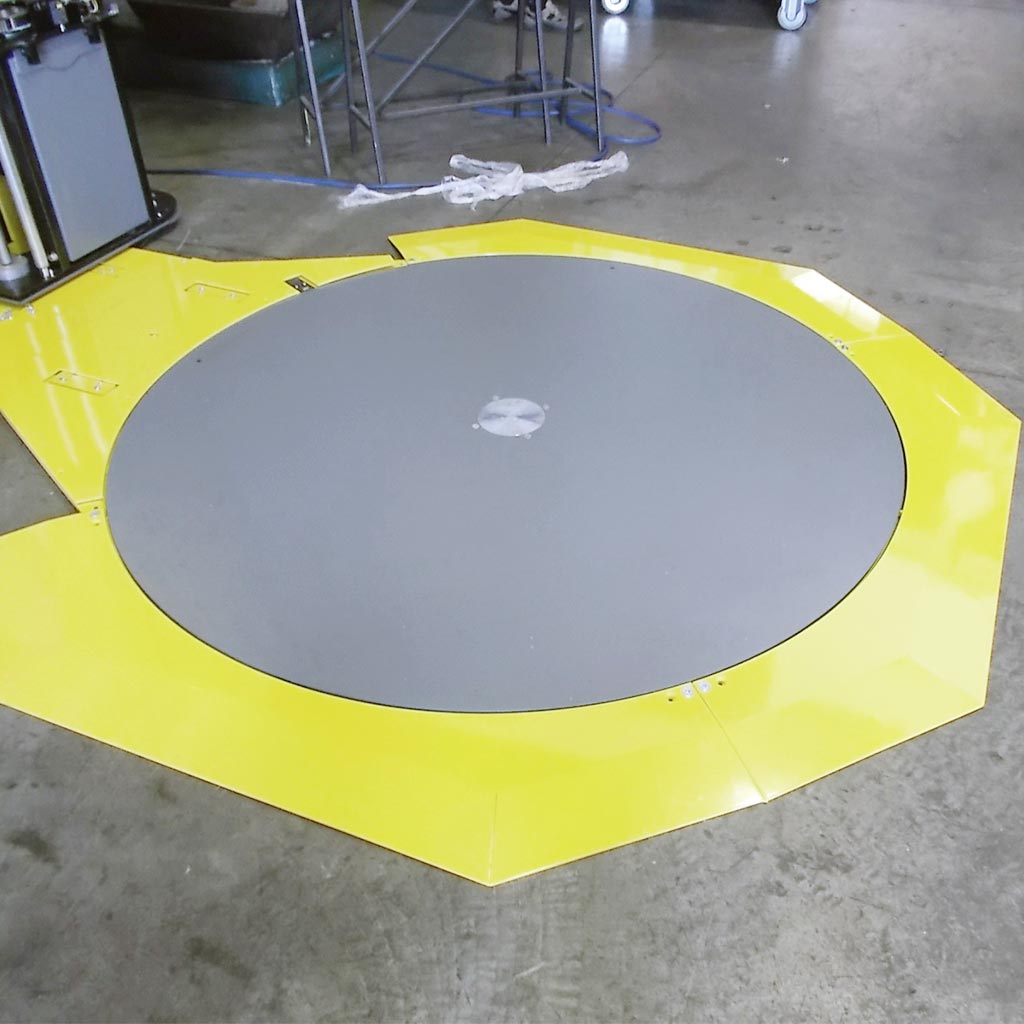

The Plana Pallet Wrapper has the lowest and most innovative turntable in the world, at only 18mm high. This low-profile pallet wrapping machine is an international award winner.

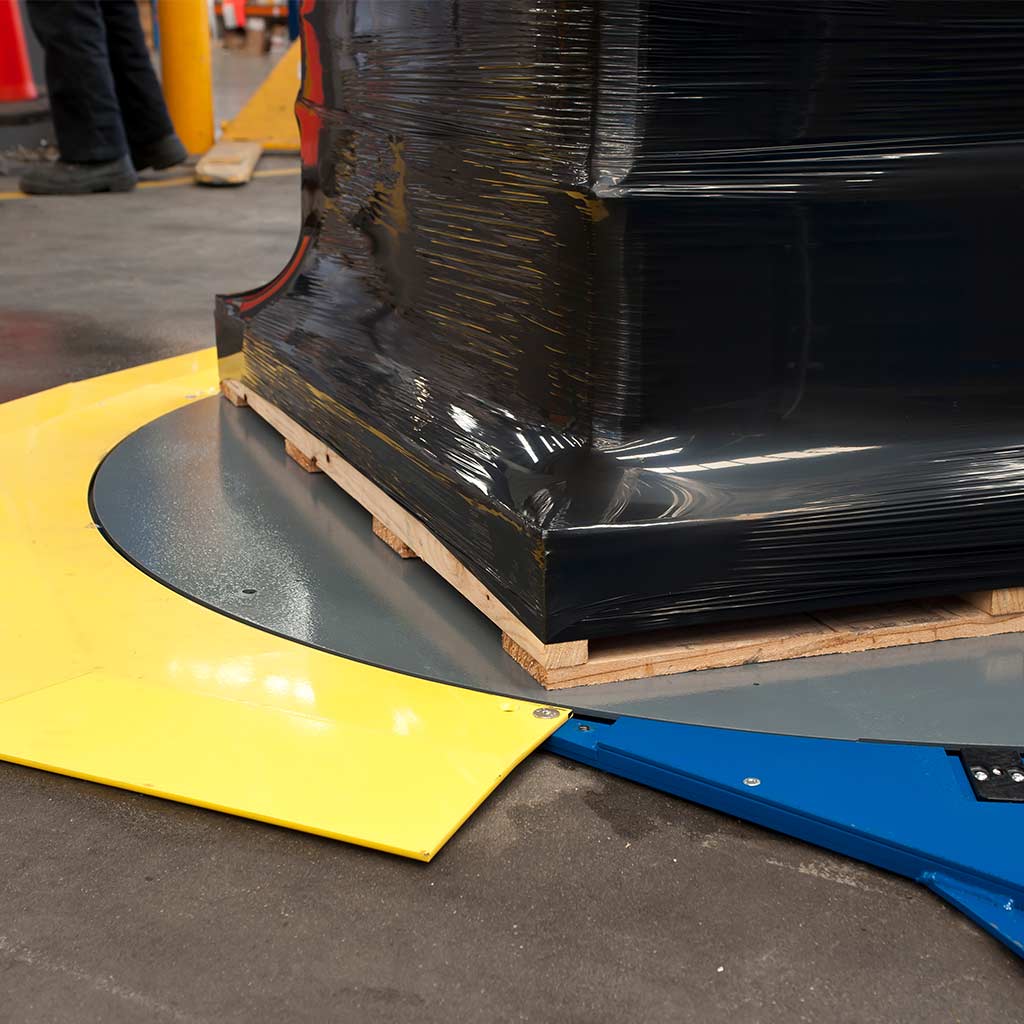

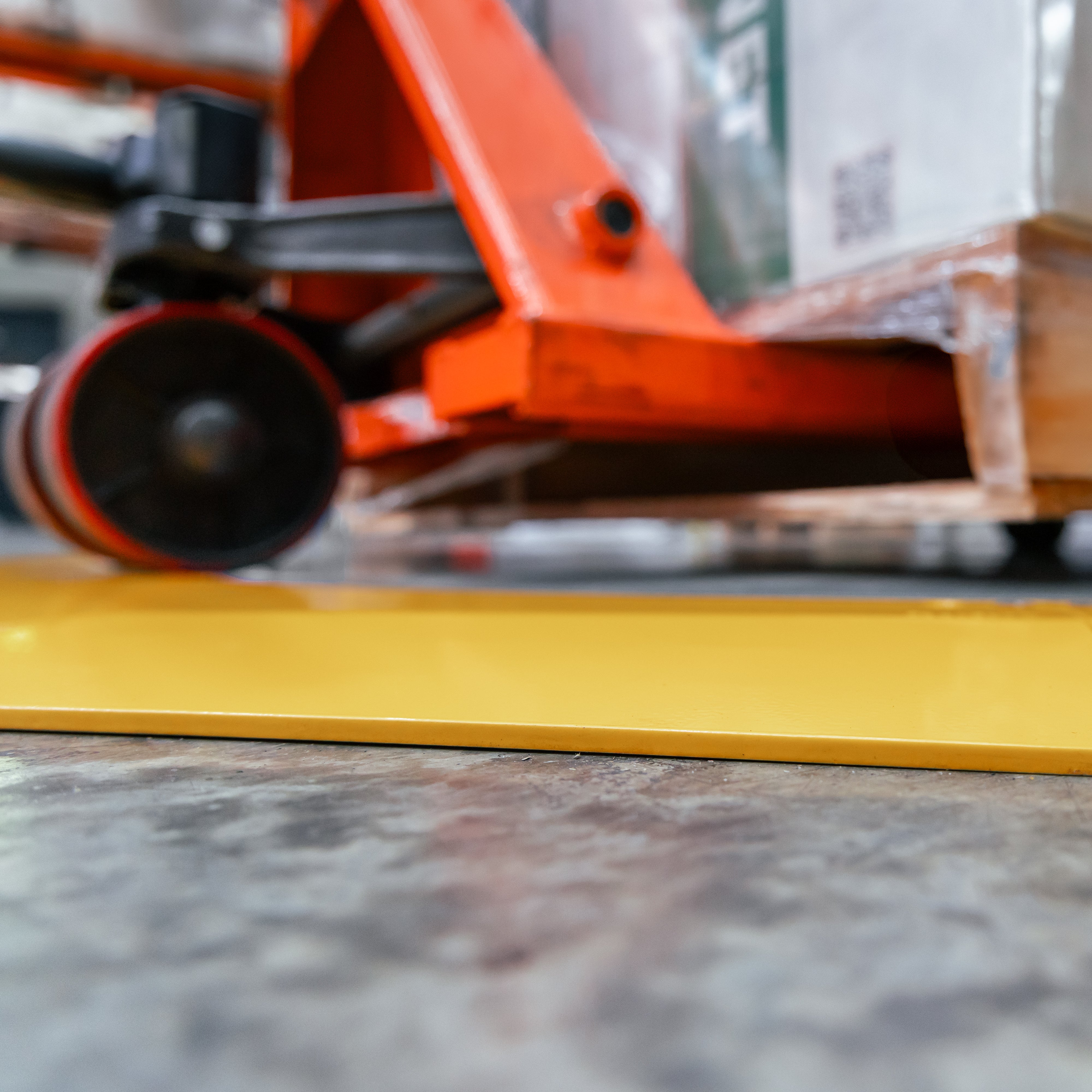

This Italian made pallet wrapping machine has a 270° access to the rotating turntable. This 20cm ramp allows easy and safer hand truck loading of pallets onto the turntable. It saves space by removing the need for long ramps on pallet wrappers, making it more efficient and compact.

Another unique feature of the Omni Pallet Wrappers is the power pre-stretch system. This allows ultra-high stretch yields, reducing pallet wrap usage and costs.

This machine is available for purchase or rental. We provide machine parts, maintenance and servicing as well as 5- and 10-year warranty options.

FUNCTION

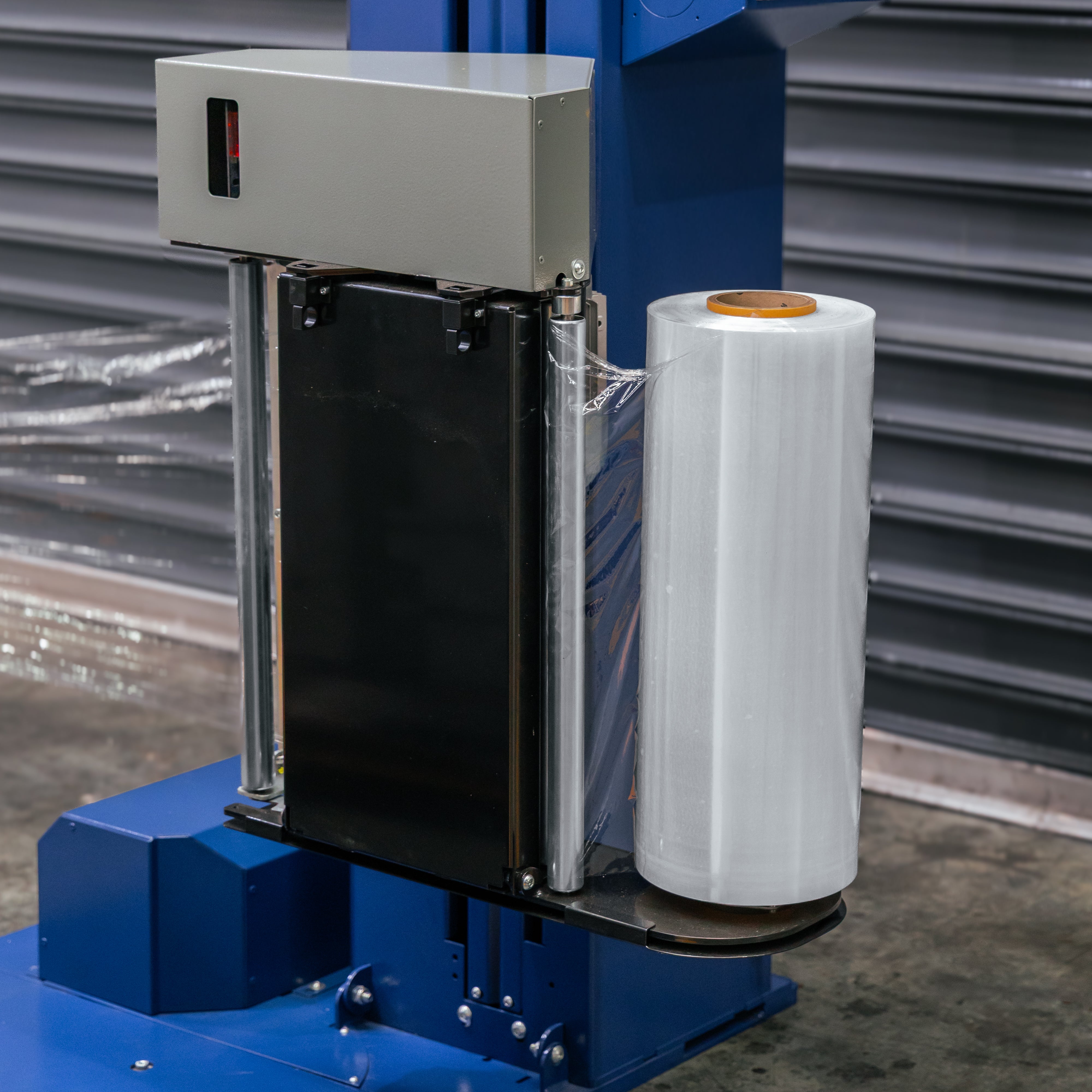

Electromagnetic brake for film stretching or optional
power pre-stretch.
Adjustable parameters: cycle election, bottom & top laps,
top sheet cycle, rotation speed, carriage ascent speed,
carriage descent speed, film tension, starting wrapping height.
6 working cycles: ascent/descent; top sheet; only ascent;
only descent; layers; stack.
Storage of 32 end user programs.
3 working modes: semi manual, semi-automatic, fixed height.
Strengthening operation.
Braked turntable at the end of the cycle.
Wrapped pallet counter.
Stop at home position.
Powder coating.

TECHNOLOGY

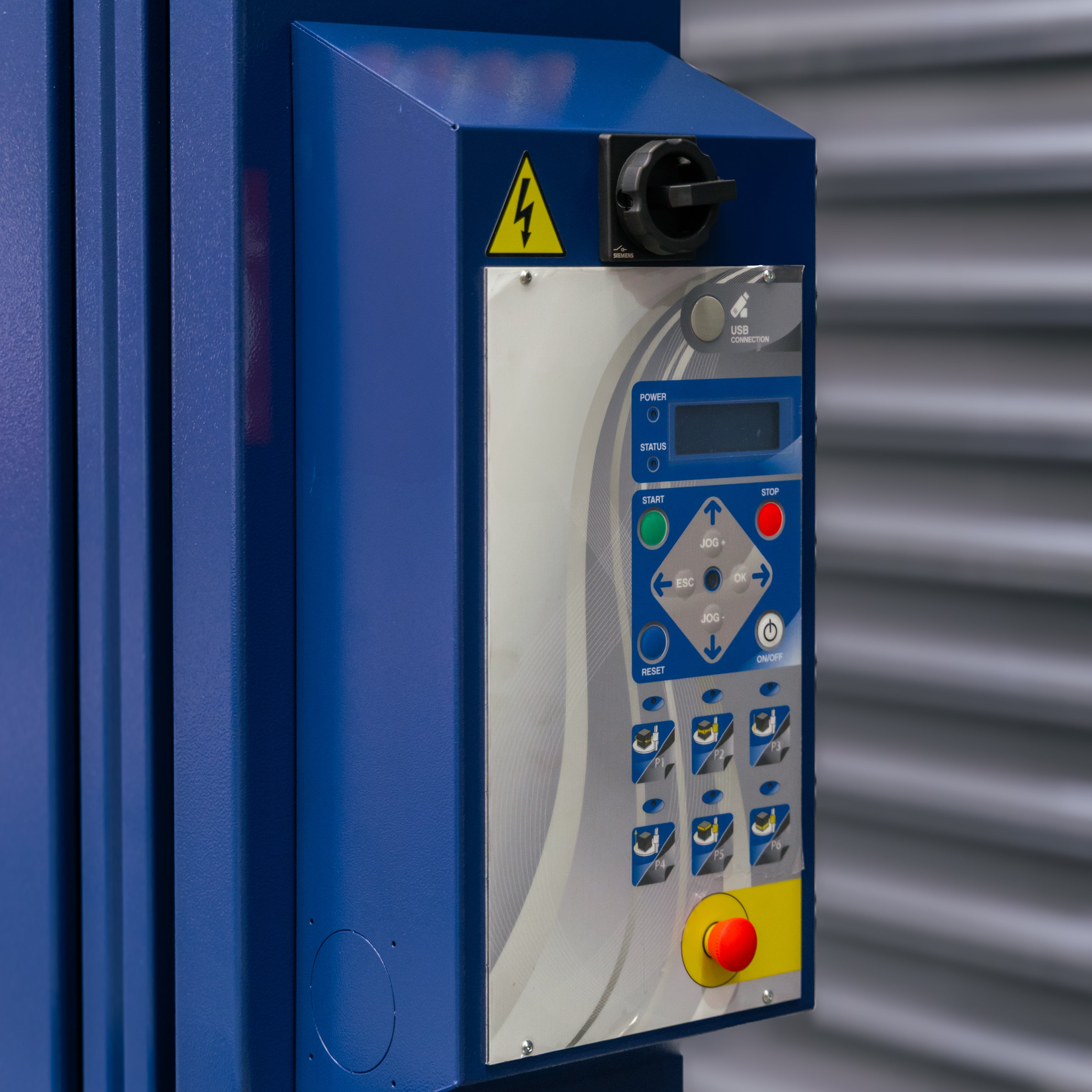

Electronic printed circuit board.
Carriage speed frequency controller.
Turntable speed frequency controller.

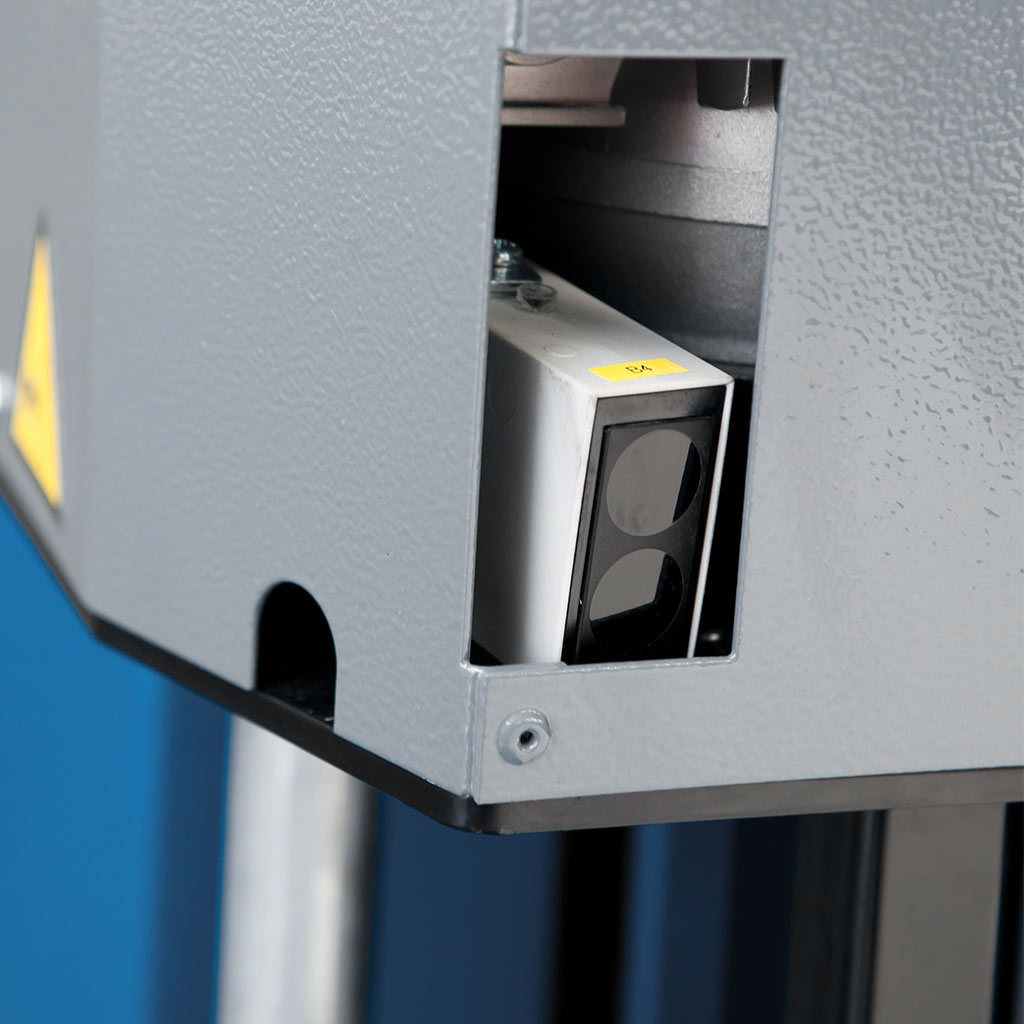

Photocell for pallet height detection.
Power board IP54.
Receiver for radio remote control.
Auto diagnostic.

EXTRA OPTIONS

Adjustable power pre-stretch.
Power pre-stretch with auto cut-off system.
Roping system.
3,000mm max wrapping height.
Ramp.
Photocell for dark loads.
Anti-static rollers.
Film edge rollers to improve load containment force.

GENERAL & SAFETY

Loading plate ø1,650mm.
Maximum pallet height: 2,400mm with optional
increased height.
Maximum pallet size: 1,200 x 1,200mm.
Maximum loading weight: 1,200kg.
Safety stop at the base of the carriage.
3 password levels (including lock password).
Acoustic warning for beginning and end cycle.

Standard Delivery Time for Stock Machines: All standard tools and machines available in stock will be dispatched within 5 business days.
Express Machine Dispatch Service: An express delivery option is available for an additional $250.00 + GST.
Exceptions to Standard Time Frames: Machines not held in stock. Machines requiring custom additions such as weighing systems. Orders for 3 or more pallet wrapping machines. Orders for 8 or more small machines or tools such as void fill machines or handheld strapping tools.

	Base	Base SuperCut	Plana	Cresco	Tiro	Motus Fix
ITEM NO	85.612.02	85.612.13	85.685	85.600	85.605	85.612
IDEAL FOR	High‑volume, 24/7 operations.	High‑volume, 24/7 operations.	Space‑limited setups using hand trucks.	Everyday warehouse environments.	Budget‑conscious, low‑volume operations.	Operations needing arm flexibility & automation.
MAX LOADING WEIGHT	2,000 kg	2,000 kg	1,200 kg	1,200 kg	1,200 kg	Max wrapping height: 2,000 mm
RENT FROM	$395/month + GST	$395/month + GST	$495/month + GST	$198/month + GST	$198/month + GST	$572/month + GST
