Electric Pallet Truck - 1.5 Tonne (F4)

  • Item No:
    25.008

A compact, lightweight electric pallet truck that moves loads up to 1,500 kg. Its short chassis gets into narrow aisles, and it takes two removable 24V lithium-ion batteries for longer shifts.

Rent from

$10/week + GST

  • Flexible terms to suit your workload
  • No large upfront cost
Rent now

Buy new

Request pricing

Own it outright. Tell us your requirements and we’ll send pricing.

Get a buy quote

No obligation. Our team replies within 2 business hours.

Need help?

PRODUCT DESCRIPTION
PRODUCT VIDEO
KEY FEATURES
SPECIFICATIONS
TECHNICAL SPECIFICATIONS
FAQs

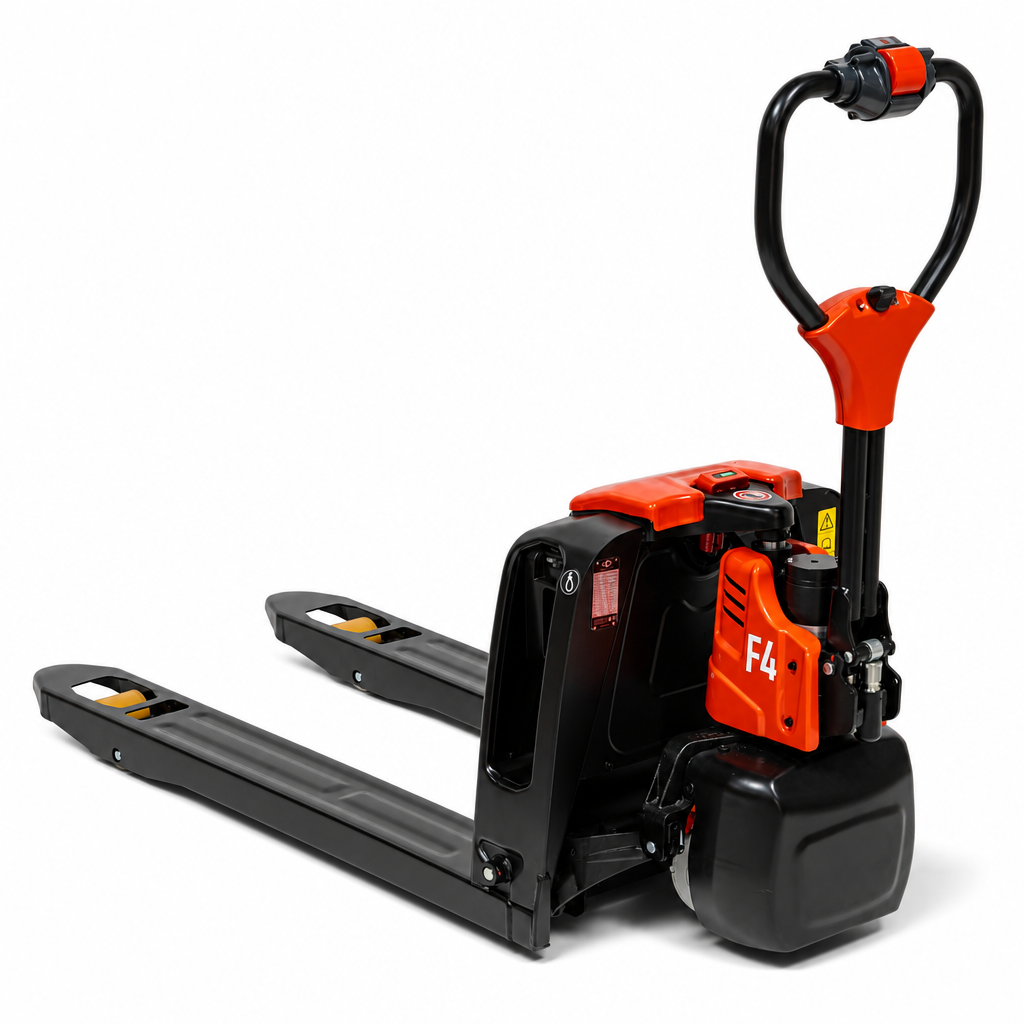

Omni F4 Electric Pallet Truck

The Omni F4 is a compact electric pallet truck built for everyday pallet moves, handling loads up to 1,500kg across everything from light retail work to busy logistics sites.

Small, Light and Easy to Handle

A 400mm fork face length and a service weight of only 120kg let the F4 get into narrow aisles, tight spaces and the back of trucks with ease. A 1,360mm turning radius and travel speeds of up to 4.5km/h keep it manoeuvrable on the floor, while an electromagnetic brake delivers safe, controlled stopping.

Power That Keeps You Working

The F4 takes up to two removable 24V/20Ah lithium-ion batteries, so operators can run both for longer shifts or swap one out and keep working while the other charges. There’s no battery watering, no acid and no dedicated battery room to manage.

Built to Suit Your Loads

Forks come in different lengths and widths to match your pallets, and optional stabilising wheels add extra support for heavier or uneven loads, fitted new or added later as operations change. The result is a pallet truck suited to retail stores, warehouses, distribution centres and logistics sites alike.

Key Features

  • 1,500kg rated capacity in a compact, 120kg service weight design
  • 400mm fork face length for narrow aisles and tight spaces
  • 1,360mm turning radius and travel speeds of up to 4.5km/h
  • Electromagnetic brake for safe, controlled stopping
  • Up to two removable 24V/20Ah lithium-ion batteries with no watering or battery room required
  • Fork length and width options, plus optional stabilising wheels

Service & Support

The F4 is backed by a 5-year warranty and supported by Omni’s own national in-house service team, the only one of its kind in Australia, with genuine EP parts and a 72-hour service action plan so your equipment stays on the floor, not in the workshop.

Flexible Purchasing

The F4 is available to buy outright or rent, with terms from 12 months to 5 years and no upfront cost to rent. Speak to our team to find the right option for your site, or to learn how your business could access it at no cost through our tailored packaging solutions.

  • 1,500kg rated capacity in a compact, 120kg service weight design
  • 400mm fork face length for narrow aisles and tight spaces
  • 1,360mm turning radius and travel speeds of up to 4.5km/h
  • Electromagnetic brake for safe, controlled stopping
  • Up to two removable 24V/20Ah lithium-ion batteries with no watering or battery room required
  • Fork length and width options, plus optional stabilising wheels

General

  • Model: F4
  • Drive: Electric
  • Operator type: Pedestrian
  • Rated capacity: 1,500 kg
  • Load centre distance: 600 mm
  • Load distance, centre of drive axle to fork: 950 mm
  • Wheelbase: 1,180 mm

Weights

  • Service weight: 120 kg
  • Axle loading, laden front/rear: 480 kg / 1,140 kg
  • Axle loading, unladen front/rear: 90 kg / 30 kg

Wheels and tyres

  • Tyres: Polyurethane
  • Tyre size, front: 210 mm × 70 mm
  • Tyre size, rear: 80 mm × 60 mm
  • Additional wheels (castor wheels): Ø 74 mm × 30 mm
  • Wheels, number front/rear (x=drive wheels): 1x —/4
  • Tread width, rear: 410 (535) mm

Dimensions

  • Lift height (standard mast): 105 mm
  • Height drawbar in driving position min./max.: 645 mm / 1,145 mm
  • Height, lowered: 82 mm
  • Overall length: 1,550 mm
  • Length to face of forks: 400 mm
  • Overall width: 590 (695) mm
  • Fork dimensions: 55 mm / 150 mm / 1,150 mm
  • Fork carriage width: 560 (685) mm
  • Ground clearance, centre of wheelbase: 30 mm
  • Aisle width for pallets 1000×1200 crossways: 2,160 mm
  • Aisle width for pallets 800 × 1200 lengthways: 2,025 mm
  • Turning radius: 1,360 mm

Performance

  • Travel speed, laden/unladen: 4/4.5 km/h
  • Lift speed, laden/unladen: 0.017/0.020 m/s
  • Lowering speed, laden/unladen: 0.057 / 0.036 m/s
  • Max gradeability, laden/unladen: 6% / 16%
  • Service brake: Electromagnetic

Battery and motors

  • Drive motor rating S2 60 min: 0.75 kW
  • Lift motor rating at S3 15%: 0.5 kW
  • Battery nominal capacity K5: 20Ah
  • Battery voltage: 24V
  • Battery type: Lithium-ion
  • Battery weight: 5 kg
  • Charger output current: 5A

Drive and steering

  • Steering design: Mechanical
  • Sound pressure level at the driver's seat: 74 dB(A)

WHY LITHIUM-ION FROM OMNI

Built to work harder, for less.

Charge faster 1–2hrs

Top up on breaks.

Last longer 3×life

3,000+ charge cycles.

Maintain less 0upkeep

No watering or acid.

Track your fleet Livedata

GPS and alerts on your phone.

How it compares

FeatureLITHIUM-IONLEAD-ACIDLPG
Charging1–2 hrs8 hrs+Gas swaps
Battery life3,000+ cycles1,000–1,500Engine wear
UpkeepNoneWatering, acidOil, filters
FumesZeroGassingExhaust
