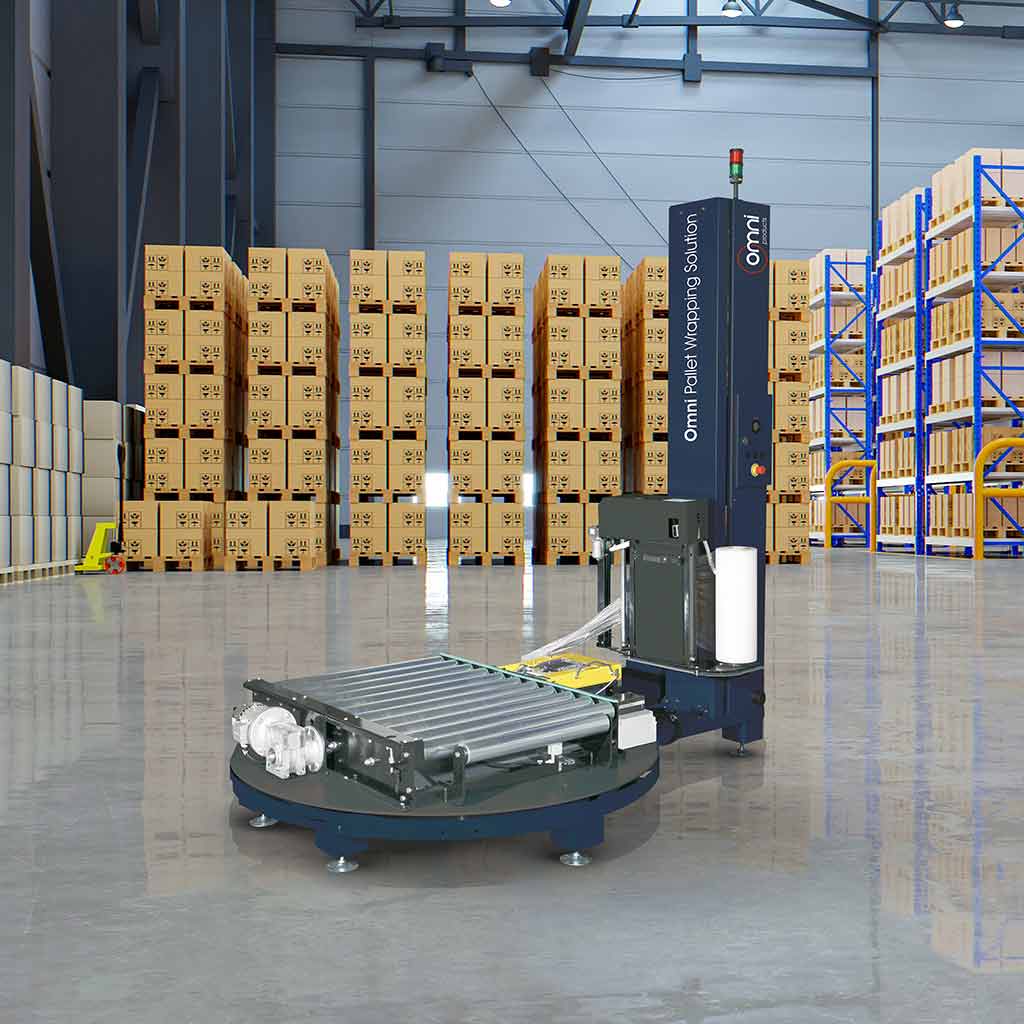

The Extrema Pallet Wrapping Machine is a fully automatic machine that is ideal for high-volume applications. This high-speed machine can wrap up to 40 pallets per hour. The turntable on this automatic wrapper rotates 12 times per minute. Using an automated pallet wrapper will enhance warehouse productivity and reduce labour.
We custom make these inline pallet wrapping machines in Italy. You can choose from endless features and customised options to suit your wrapping requirements. This includes scales, barcode readers, pallet top sheet dispensers and more.
We offer 5- and 10-year warranty options on this automated pallet wrapping machine. ย
Download the specs
SPECIFICATIONS
- The automatic cycle includes loading the pallet, film hooking, pallet wrapping, film cold cutting, hot sealing of cut edge and unloading of the pallet.
- Air device to blow up the initial film tail.
- Roller or chain conveyor on the turntable.
- Power pre-stretch carriage.
- PLC for management of the wrapping cycle.
- Frequency controller for carriage speed adjustment.
- Frequency controller for turntable speed adjustement.
- Turntable: 2,000mm.
- Maximum height of pallet: 2,100mm.
- Maximum size of the pallet: 1,200 x 1,200mm.
- Maximum loading weight: 2,000kg.
- Power board ip54.
- Photocell for pallet height detection.
- Safety stop at the base of the carriage.
- Stop at home position.
- 3 password levels (including lock password).
- Adjustable parameters by the control panel without password: cycle selection, bottom laps, top laps, topsheet cycle parameters, rotation speed, carriage ascent speed, carriage descent speed, film tension, starting wrapping height.
- 3 working cycles: ascent/descent; topsheet; layers.
- Storage of 32 end user programs.
- Strenghtening operation.
- Auto diagnostic.
- Wrapped pallet counter.
- Powder coating.
- Braked turntable at the end of the cycle.
EXTRA OPTIONSย
- Adjustable power pre-stretch.
- Power pre-stretch with auto cut-off system.
- Roping system.
- Increased maximum wrapping height.
- Photocell for dark loads.
- Antistatic rollers.
- Film edge rollers to improve load containment force.
- Standard Delivery Time for Stock Machines: All standard tools and machines available in stock will be dispatched within 5 business days.
- Express Machine Dispatch Service: An express delivery option is available for an additional $250.00 + GST.
- Exceptions to Standard Time Frames: Machines not held in stock. Machines requiring custom additions such as weighing systems. Orders for 3 or more pallet wrapping machines. Orders for 8 or more small machines or tools such as void fill machines or handheld strapping tools.
Vertex X25
|
Extrema
|
Extrema Plus
|
|
|---|---|---|---|
| ITEM NO | 85.C38017.01 | 85.C39055.01 | 85.C42445.01 |
| IDEAL FOR | Rotating arm design for stability. | Custom-built to fit production lines. | Automatic film cutting and sealing. |
| MAX WRAPPING HEIGHT | 3,000 mm | 2,100 mm | 2,200 mm |
| PALLETS WRAPPED / HR | 35 โ 50 | 20 โ 40 | 35 โ 50 |
| PRICING | Customised solution โ price on request | Customised solution โ price on request | Customised solution โ price on request |
