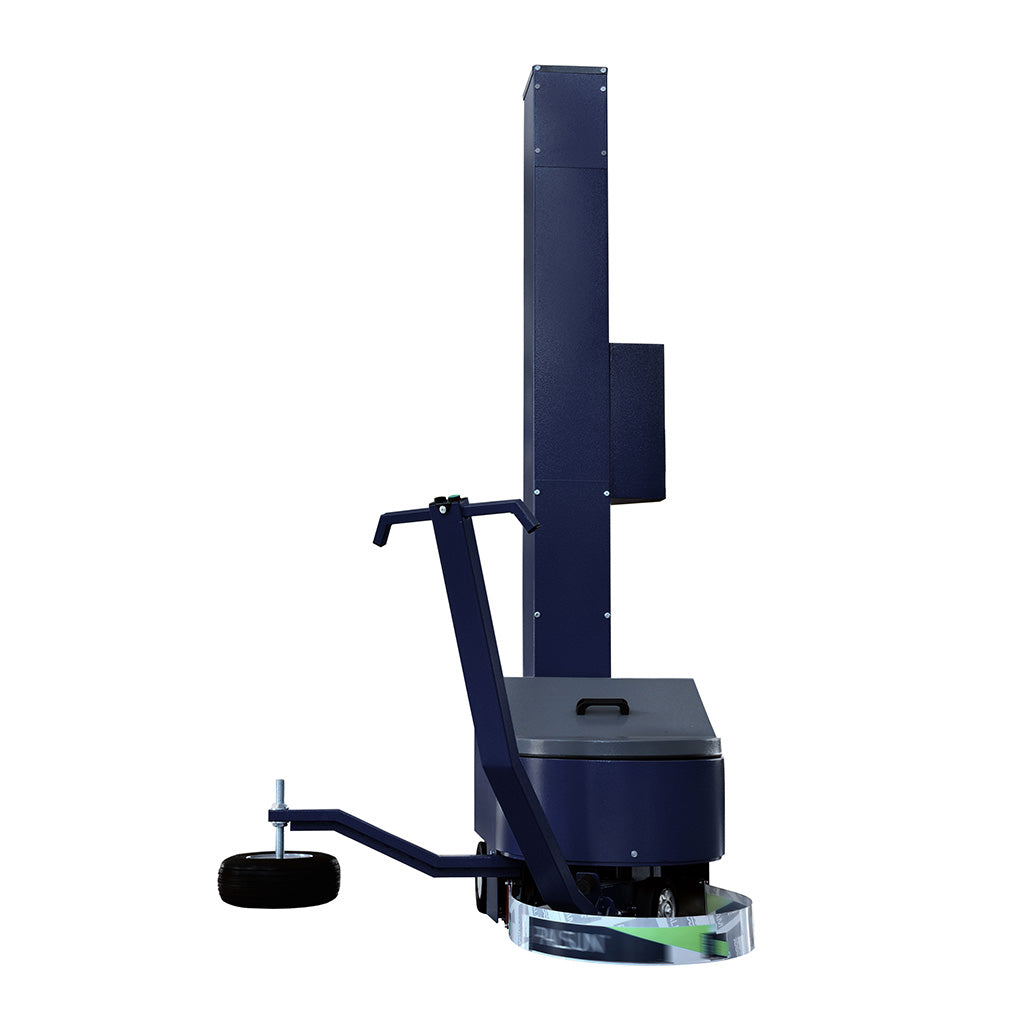

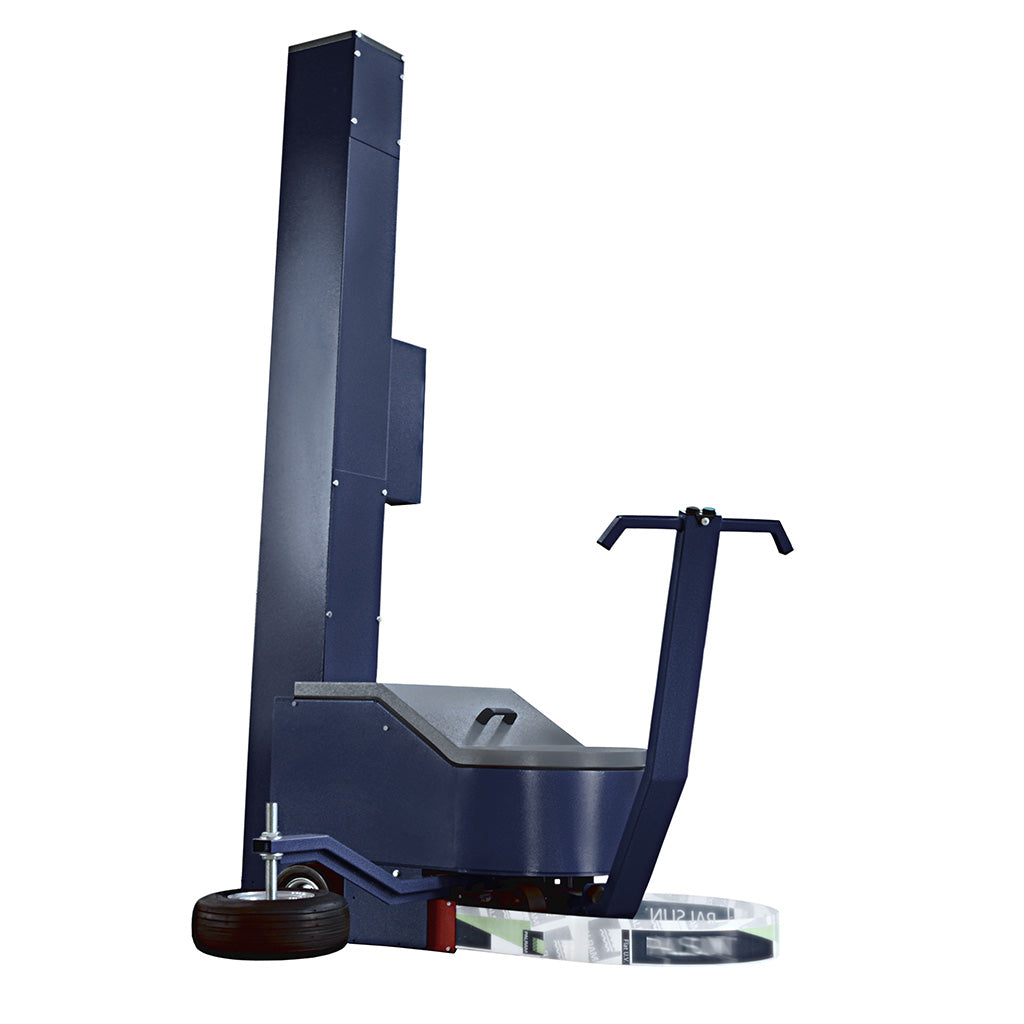

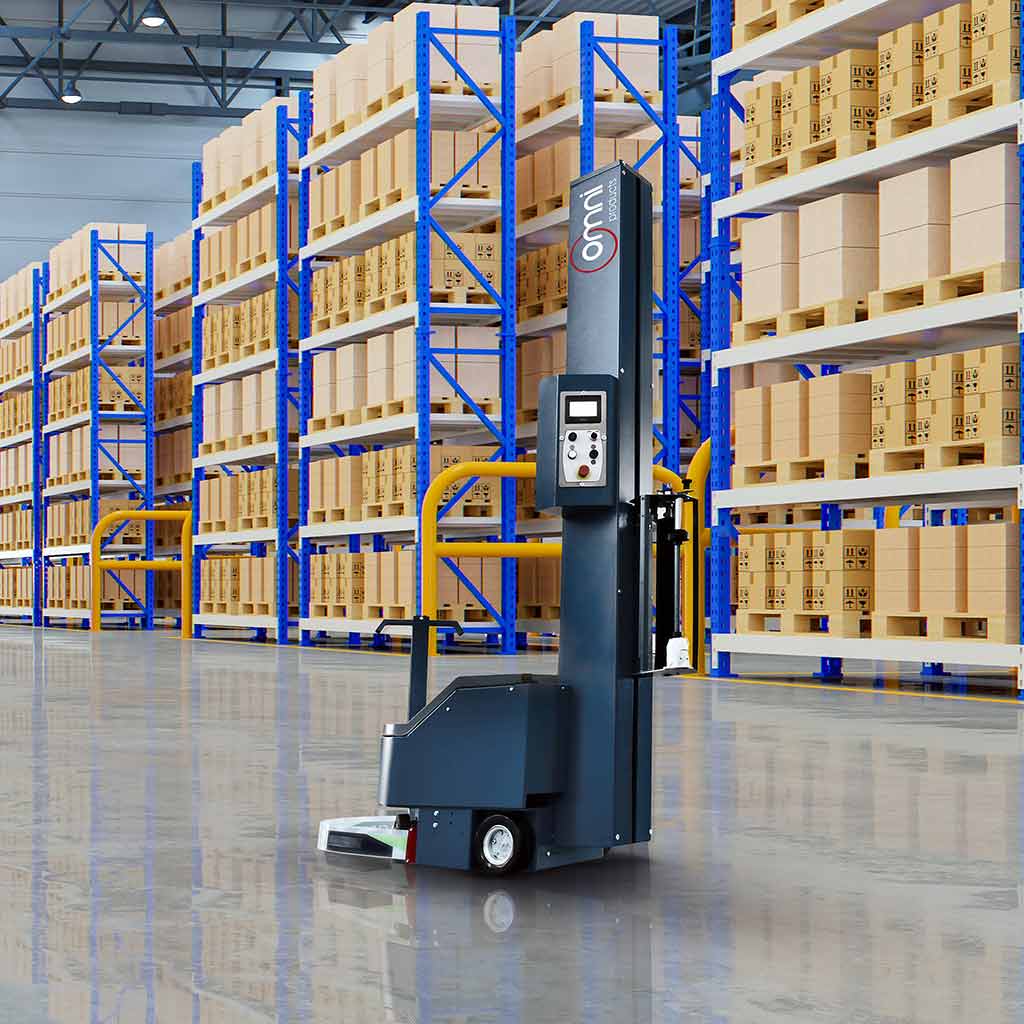

The Omni Cingo is a mobile pallet wrapping machine. Warehouses use this machine to wrap oversized pallets that cannot fit on a turntable or are challenging to manoeuvre.
The Cingo machine wraps pallets with stretch film to secure the load for transport. This battery-operated mobile pallet wrapper provides exceptional mobility and convenience. Its compact size allows for wrapping in small areas.
You can rent these robotic pallet wrapping machines for a low-cost monthly fee. We provide full maintenance and servicing on these machines.
Download the specs
FUNCTION
- Adjustable parameters: cycle selection, bottom & top wraps,ย
rotation speed, carriage speed going up & down, film tension,ย
photocell delay, starting height. - Reinforcing operation.
- Working cycles: up/down; top sheet; only ascent; only down.
- 3 working modes: manual, semi-automatic, fixed height.
- Guide wheel with quick height adjustment.
GENERAL & SAFETY
- Maximum wrapping height: 2,400mm.
- Maximum size of the pallet: unlimited.
- Manual brake for film tension.
- Safety bumper at the base of machine.
- Main parameters protected by password.
- Acoustic warning at the cycle beginning and stop.
- Powder coating.
TECHNOLOGY
- Electronic printed circuit board.
- Rotation speed frequency controller (from 1.8 km/h to 4.4 km/h).
- Carriage speed frequency controller (speed going up & down can be set differently).
- Photocell for pallet height detection.
- Power board ip54.

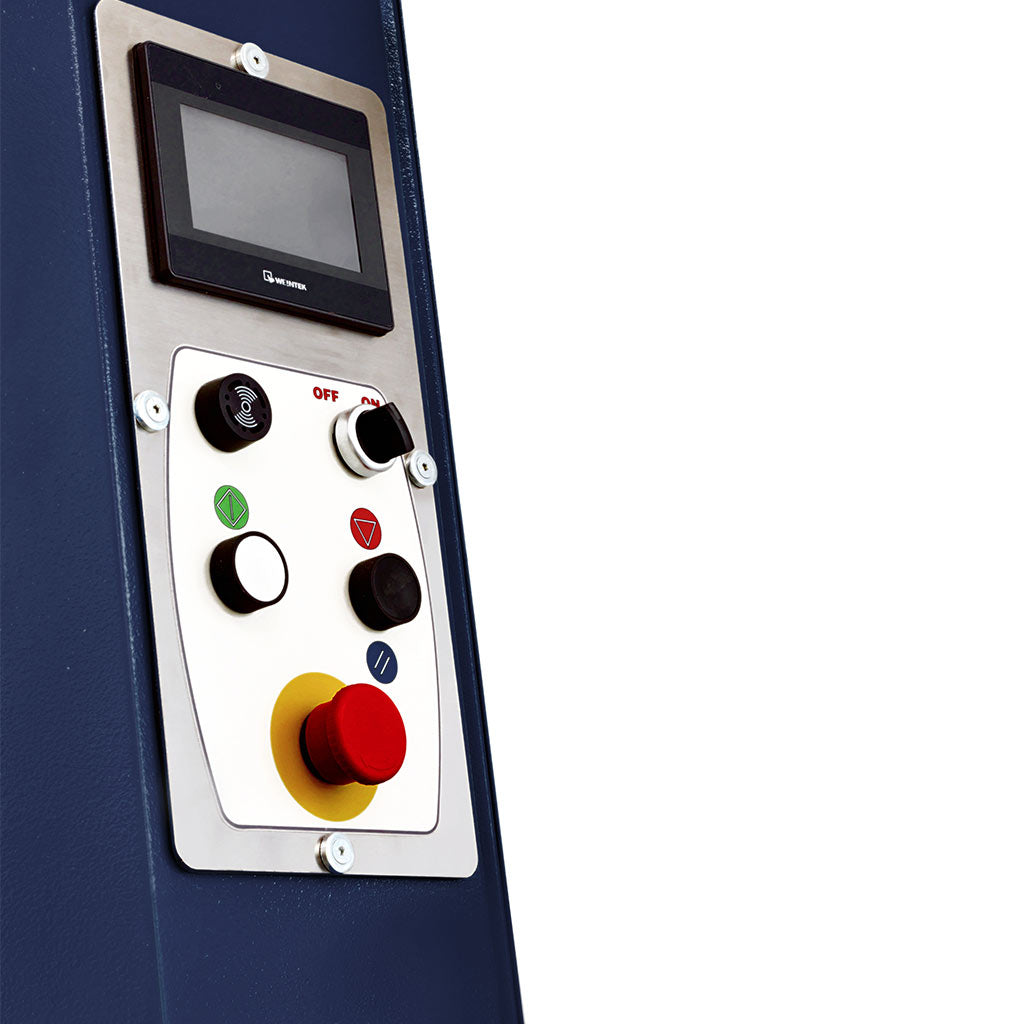

- Touch screen.
- Auto diagnostic.
- The customer can save 20 programs.
- Battery charge monitoring and a warning message on the display when the battery is low.
- An advanced battery charger with an efficiency of> 85%,ย
a microprocessor fully controls the charging process,ย
and the battery is automatically reset after connecting a new battery.ย
It also protects against polarity inversion and short circuits,ย
has auto diagnostic capabilities, compensates forย
voltage drops on the battery cables, and has a normally closed power contact.
EXTRA OPTIONS
- Flashing lamp.
- Double guide wheel.
- Photocell for dark loads.
- Film edge rollers to improve load containment force.
- Standard Delivery Time for Stock Machines: All standard tools and machines available in stock will be dispatched within 5 business days.
- Express Machine Dispatch Service: An express delivery option is available for an additional $250.00 + GST.
- Exceptions to Standard Time Frames: Machines not held in stock. Machines requiring custom additions such as weighing systems. Orders for 3 or more pallet wrapping machines. Orders for 8 or more small machines or tools such as void fill machines or handheld strapping tools.
Cingo
|
Viverra
|
|
|---|---|---|
| ITEM NO | 85.614 | 85.613.01 |
| IDEAL FOR | Oversized or irregular pallets that can't fit on a turntable. | Self-driving operations needing power pre-stretch & auto cut-off. |
| MAX WRAPPING HEIGHT | 2,400 mm | 2,400 mm |
| RENT FROM | $360/month + GST | $430/month + GST |
